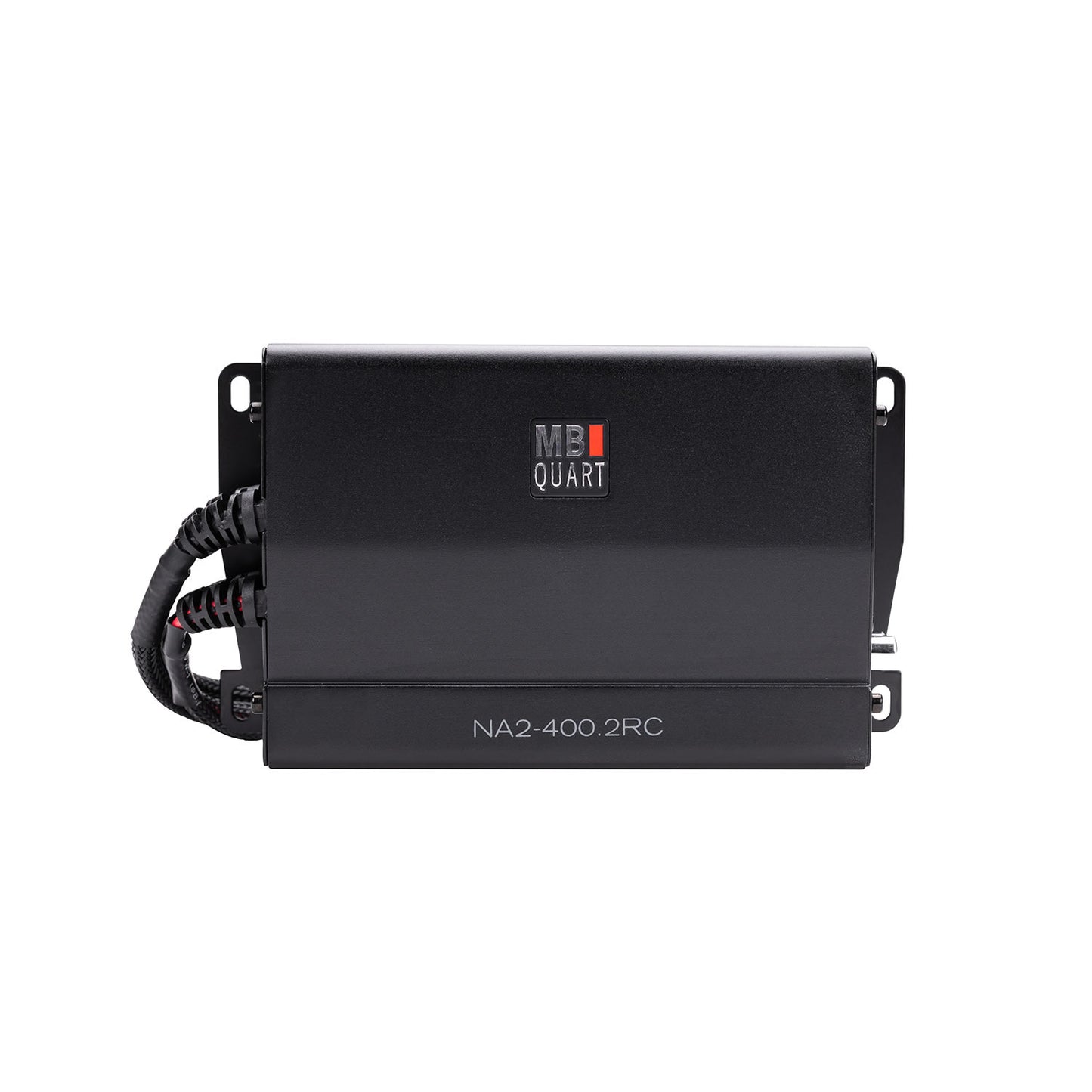

NA2-400.2RC Nautic 400 Watt Amplifier
NA2-400.2RC Nautic 400 Watt Amplifier
Marine Grade Protection / IPX Rating |
Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture. IPX5 |
---|---|
Low Noise Preamplifier Circuit |
The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. |

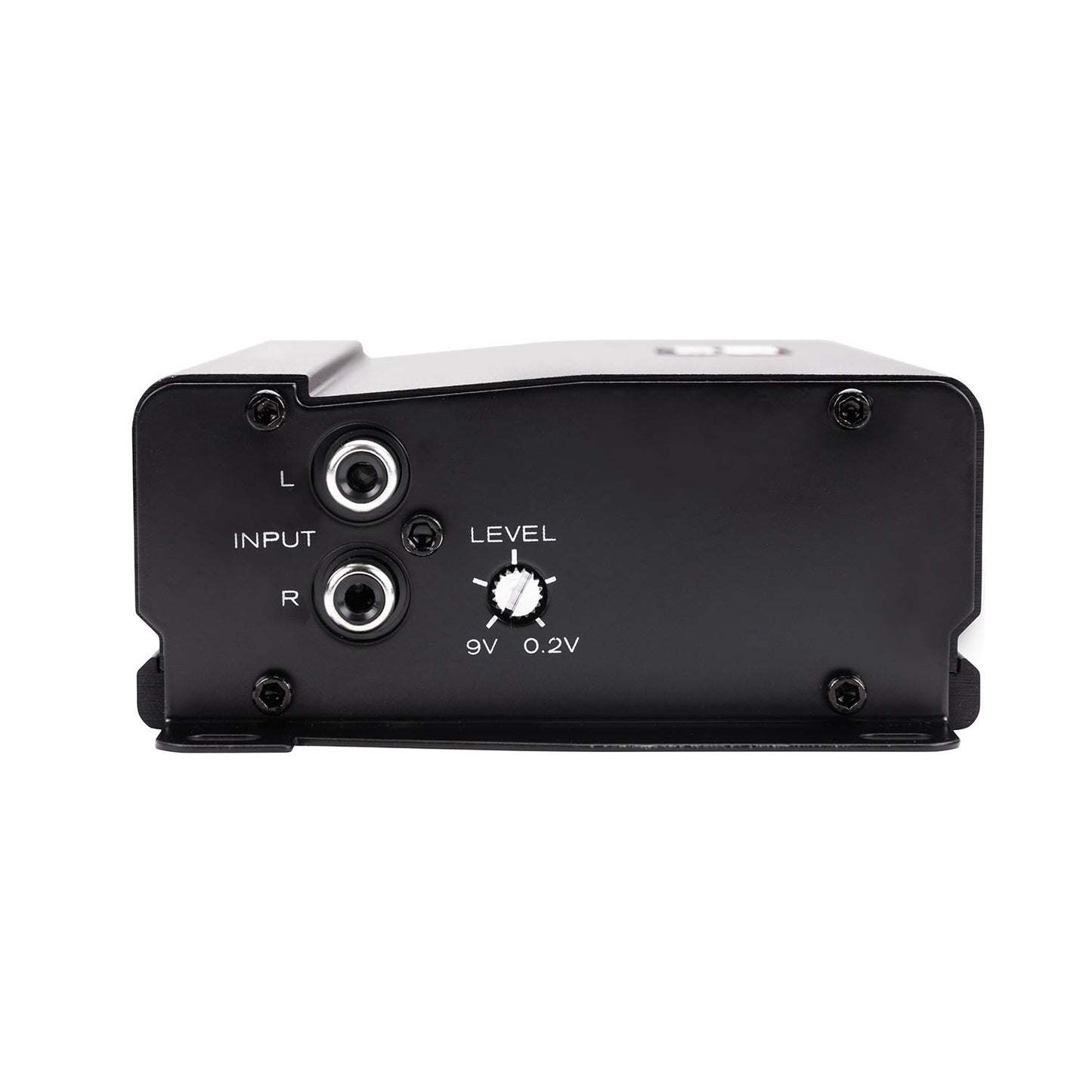

RCA Inputs |
1 pair high temperature impact resistant nickel-plated RCA inputs with hex screw terminals that allow for secure connections and is erosion resistant. |
Operation Mode |
Flexible installation allows this amplifier to run in two channel or bridged mono mode. |
Class / Topology |
Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink. |
Output Device Technology |
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
Heat Sink |
Aluminum: Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration. |
Power Supply |
Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |
Output Connections |
Quick Disconnect Wires, RCA Connections: Quickly remove amplifer when you are putting machine up for the winter of as a security precaution. |
Connection Type |
Nickel-plated connections: Nickel plated corrosion resistant connections. |

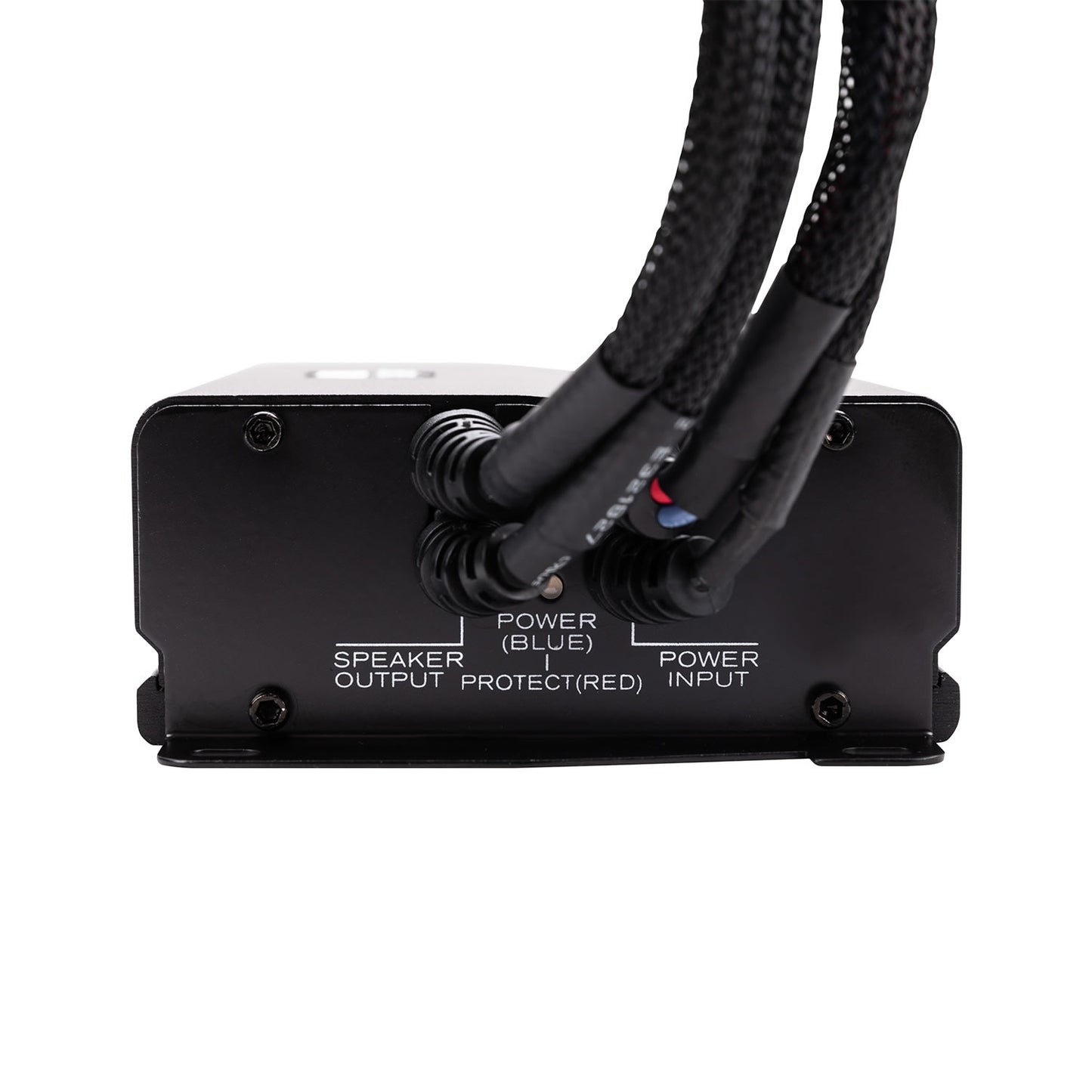

LED System Protection Circuitry Diagnostics |
Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |
